Product Details

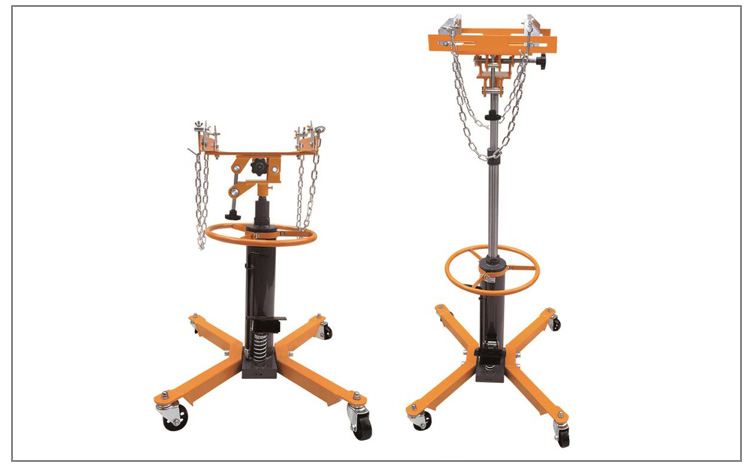

Transmission jack
Transmission jack
Mainly used for automotive gearbox, engine, transmission and other weight before and after the bridge does not exceed 5000KG Wow Oh for the installation and removal;
Is a column or scissor lift equipment supporting the matching
Model | Capacity(ton) | Min.H(mm) | Max.H(mm) | G.W/N.W | Packing | 20'Container(pcs) |
S-T0.5 | 0.5 | 1100 | 1900 | 32/30 | 105*25*27 | 392 |
S-T0.5A | 0.5 | 1260 | 1970 | 45/39 | 113*31*38 | 315 |
S-T0.5B | 0.5 | 870 | 1800 | 68/60 | 48*27*73 | 120 |
S-T0.5C | 0.5 | 870 | 1800 | 86/80 | 55*36*85 | 120 |
S-T1B | 1 | 880 | 1210 | 88/82 | 55*36*85 | 120 |
