10 Ton Hydraulic Jack Body Frame set atuo tool

Specifications:

Color: red

Size:32"x17"x6.5" / 815mm*430mm*165mm

N.W.:68lb / 31kg

G.W.:73lb / 33kg

Load Capacity: 10 tons

Jack Power Type: Hydraulic

Max Lifting Height: 130 mm

Cylinder Min Height:330 mm

Working Pressure: 62 Mpa

Oil Be Filled: 500g

★ Perfect for automotive, truck, farm and heavy equipment repair. Perfect for auto body, frame repair and construction jobs.

★ Heavy duty and high durability metal material with up to 10-Ton weight capacity. Thick and solid construction ensure long-term service life and stability.

★ Easy to set up and easy to operate. Put them back to the case easily when not in use to save space. Leakless design makes the work more safe.

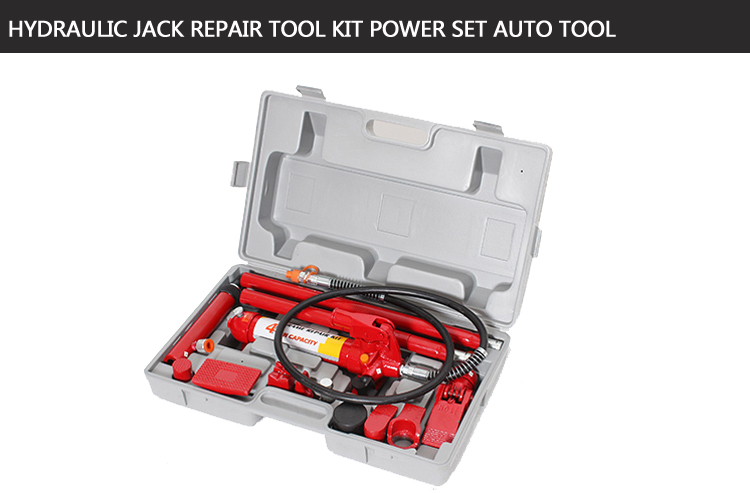

★ Comes with a grey plastic case for easy storage. With the convenient grip handle, it is easy for you to transport to anywhere you want.

For Load:

Maximum load can not exceed the rated capacity The load can not exceed the half of the capacity when all tubes used.

The extension of the piston can net exceed the stroke.

For Safety:

Working oil:No 10

Check the level of oil,if it is not sufficient,please add the same hydraulic oil.

After using,close the valve with the cover,to keep the oil free from the dust and dirt.

Before lifting,adjust the jack slowly to make the load coaxial with resnect to jack.

Tube can not be bent,near to the catting tools and fires,also can not put te weight on it.
