Product Details

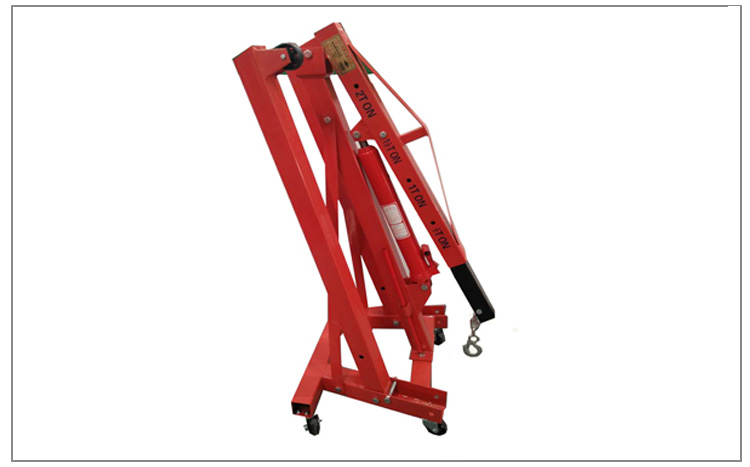

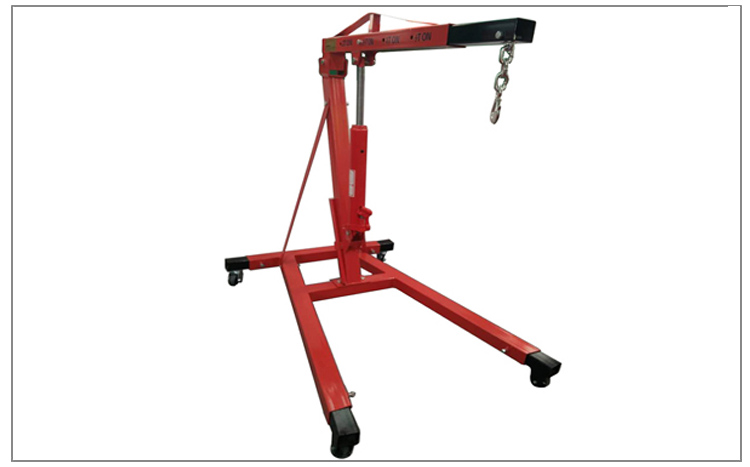

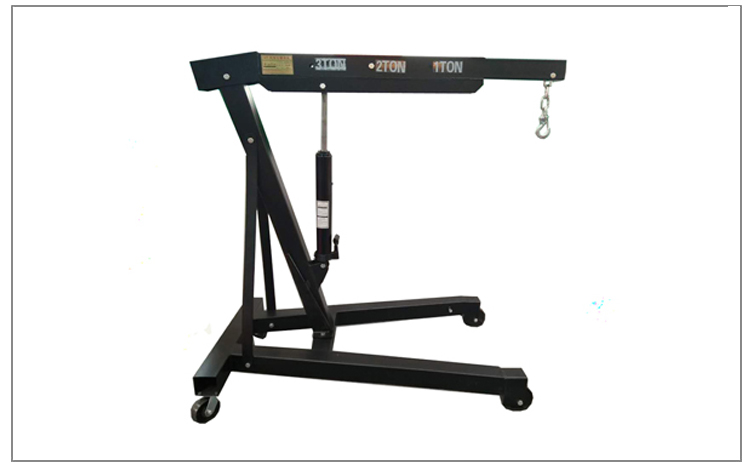

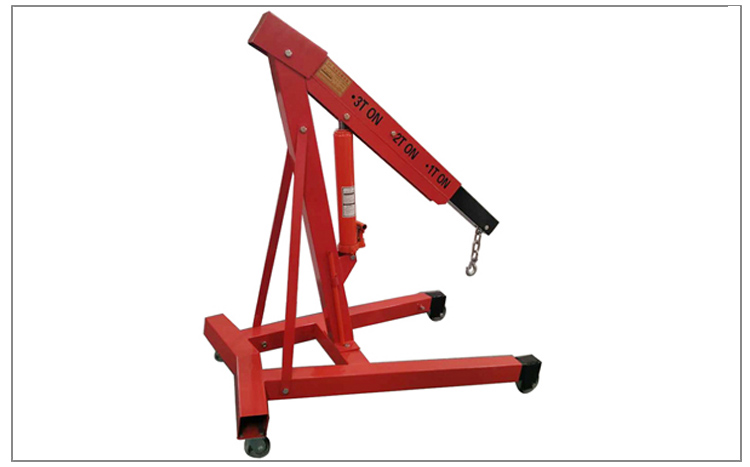

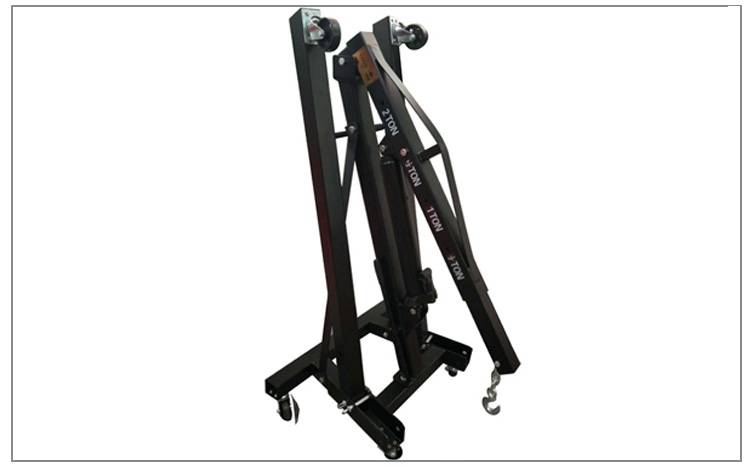

PickUP Crane
Place of Origin:Hebei, China (Mainland) Brand Name:Hebei Cloud
Model Number:S-SC/S-PC Warranty:1 Years
Product name:Shop Crane Capacity:1-3tons/1000-2000LBS
Material:High Quality Square Steel Tube Type:Hydraulic Type
Lifting Length:0-2360mm Working Range of Boom:870-1830mm
Surface Treatment:Power coated Color:Red/Black or as request
Function:Car Repair
Packaging & Delivery
- Packaging Details
- Packing of Hydraulic Engine Shop Crane and Pickup Truck Crane :
1) For 1-2Tons of Shop Crane : 1set/2cartons
2) For 3Tons of Shop Crane : 1set/3cartons
3) For 1000-2000lbs Pickup truck crane : 1set/2cartons
- Delivery Time
- 2-15days after the 30% deposit
| PickUp Crane | |||||
| Model | Type | Capacity (Ton) | Working Range of Boom (mm) | Lifting Length (mm) | Capacity Pump (Ton) |
| S-SC-1 | Standard | 1 | 960-1240 | 0-2150 | 5 |
| S-SCN-2A/2B | Non Foldable | 2 | 1050-1590 | 0-2360 | 8 |
| S-SCF-2A/2B | Foldable | 2 | 1050-1590 | 0-2360 | 8 |
| S-SCFH-2 | Foldable, heavey | 2 | 1050-1590 | 0-2360 | 8 |
| S-SCF-3A/3B | Foldable | 3 | 1200-1830 | 0-2200 | 12 |
| S-SCFH-3 | Foldable, heavey | 3 | 1200-1830 | 0-2200 | 12 |

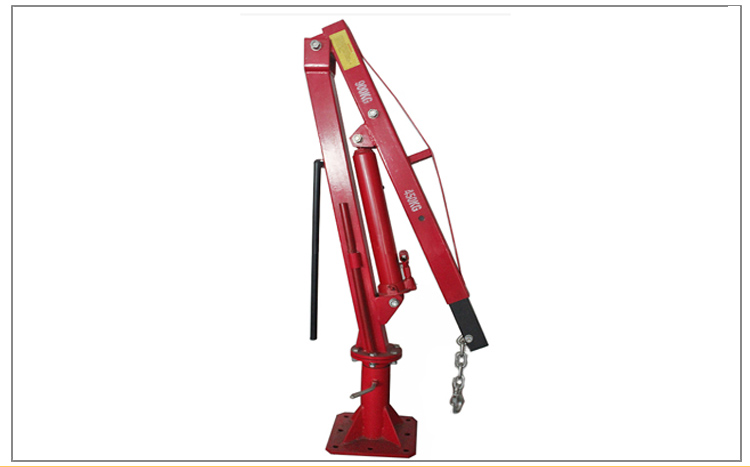

| Pickup Truck Crane | |||||
| Model | Capacity (LBS) | Working Range of Boom (mm) | Lifting Length (mm) | ||
| S-PC-1A | 1000 | 870-1290 | 0-2015 | ||
| S-PC-2A | 2000 | 870-1290 | 0-2300 | ||
| Hydraulic Engine Shop Crane | ||||
| Model | Packing Size | N.W | G.W | QTY/20’CY |
| S-SC-1A | 85x35x17cm/ 140x30x21cm | 68kgs | 70kgs | 220SETS |
| S-SCN-2A/2B | 30x30x31cm/
126x30x24cm |
53kgs/64kgs | 55kgs/66kgs | 250SETS |
| S-SCF-2A/2B | 30x30x31cm/ 126x30x24cm | 58kgs/64kgs | 60kgs/66kgs | 250SETS |
| S-SCFH-2 | 30x30x31cm/ 126x30x24cm | 83kgs | 85kgs | 250SETS |
| S-SCF-3A/3B | 72x18x16cm/ 142x33x22cm/ 134x83x11cm | 80kgs/90kgs | 82kgs/92kgs | 110SETS |
| S-SCFH-3 | 72x18x16cm/ 142x33x22cm/ 134x83x11cm | 130kgs | 132kgs | 110SETS |
| Pickup Truck Crane | ||||
| Model | Packing Size | N.W | G.W | QTY/20'CY |
| S-PC-1A | 29x29x34cm/ 109x29x20cm | 37kgs | 39kgs | 290SETS |
| S-PC-2A | 29x29x31cm/ 126x30x24cm | 53kgs | 57kgs | 200SETS |
