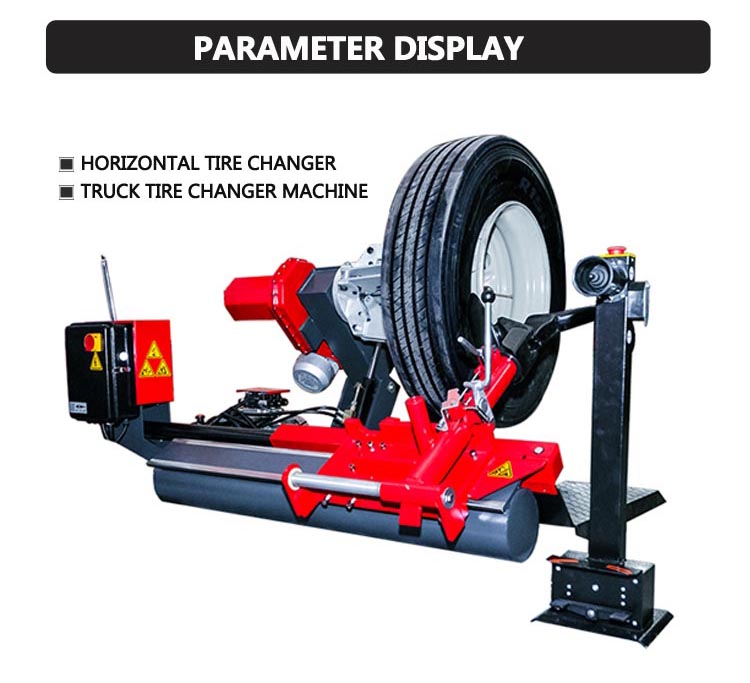

Truck Tire changer S-T568

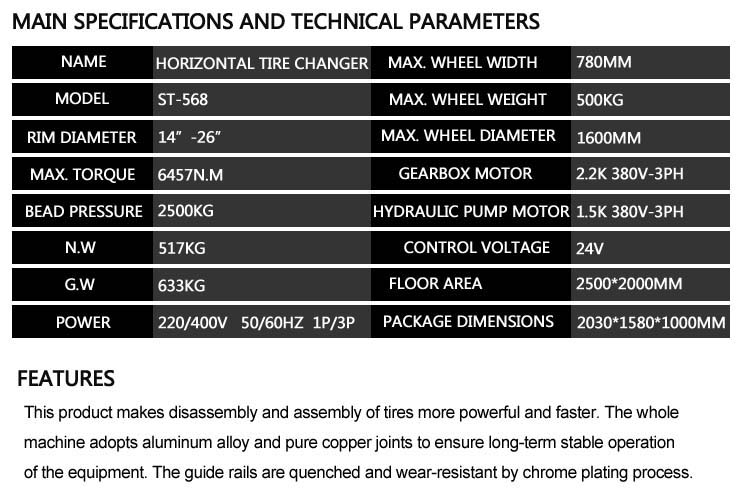

TECHNICAL DATA

PRODUCTS INTRODUCTION

· Semi-Auyomatic truck tyre changer t568 universal

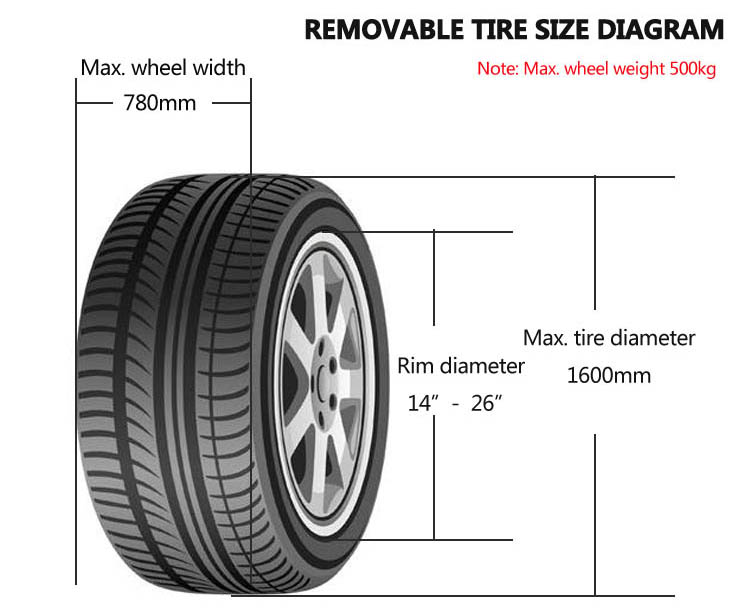

· Self-Centering chuck rim capacity 14"-26"
· Clochwise and anticlockwise rotation of chuck
· Italian pump optional

WEIGHT&DIMENSIONS

Model：Truck Tire changerS-T568
Gross Egight（kg）：633

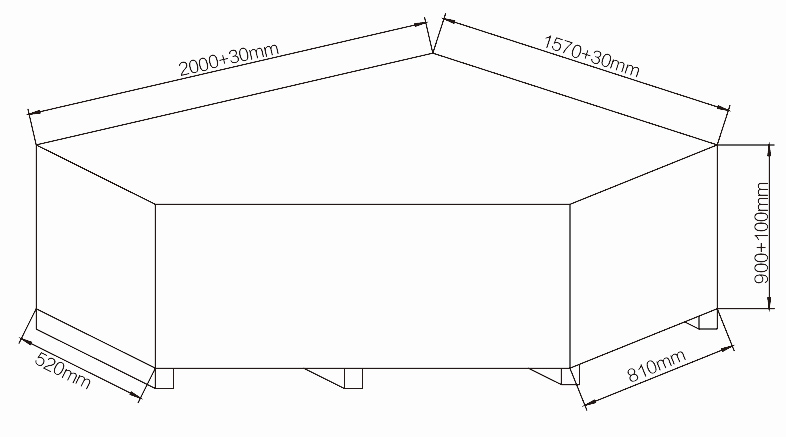

Outside Dimension L×W×H（mm）：2030×1580×1000

Product Introduction

The S-T568 Truck Tire Changer is the ideal solution for workshops looking for a balance between power and space-saving design. Engineered to handle truck, bus, and light commercial vehicle tires, it supports a rim range from 14" to 26". Whether you are running a professional tire shop or a fleet maintenance department, the S-T568 provides the reliability of industrial-grade hydraulics with an intuitive operation system that reduces technician fatigue and increases turnover.

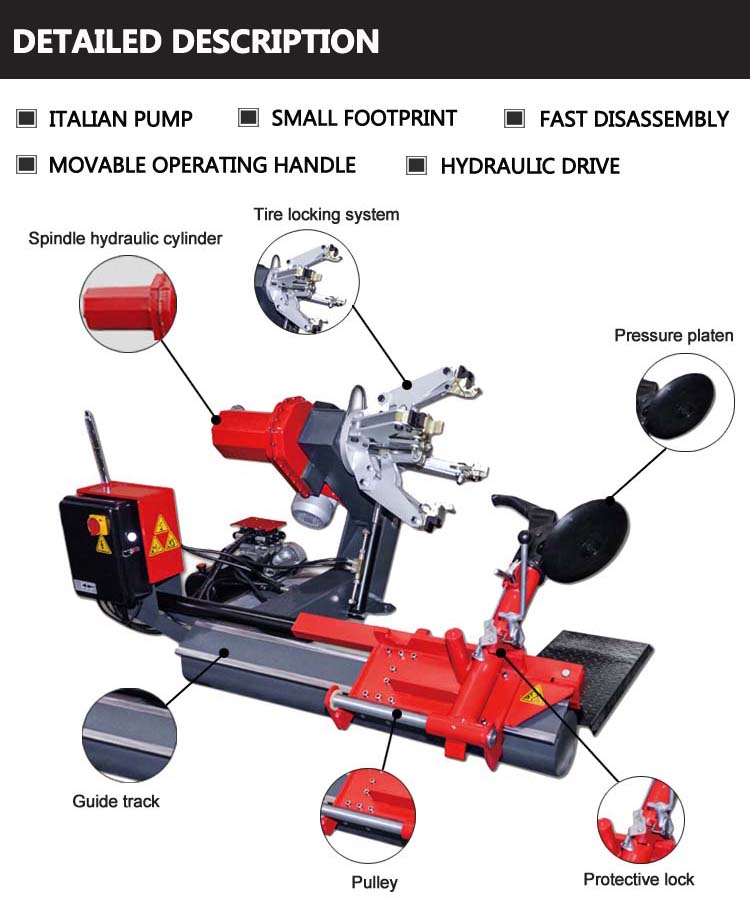

Core Advantages & Features

• Space-Efficient Design: The S-T568 features a optimized structure, making it perfect for workshops with limited floor space or for installation in mobile service vans.

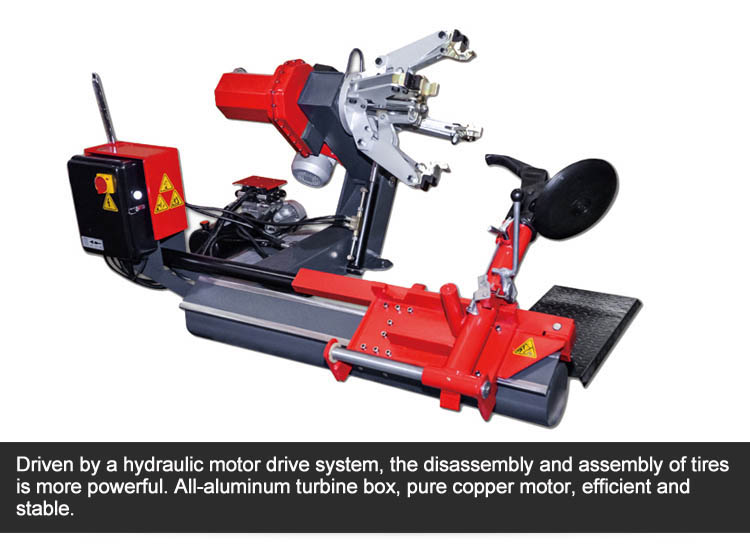

• Industrial-Grade Hydraulic System: Built with a high-performance hydraulic pump station, ensuring consistent torque and smooth lifting motion even when handling heavy-duty assemblies.

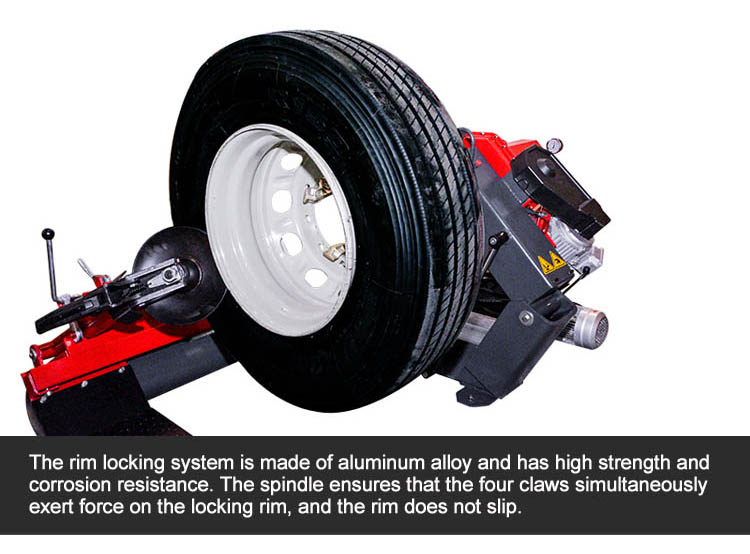

• Precision Four-Jaw Chuck: The self-centering hydraulic chuck ensures a secure grip on the rim, preventing slippage during the most demanding bead-breaking tasks.

• Adjustable Tool Arm: The manual rotation tool arm allows for quick switching between the mounting head and the bead-breaker disc, streamlining the tire-changing workflow.

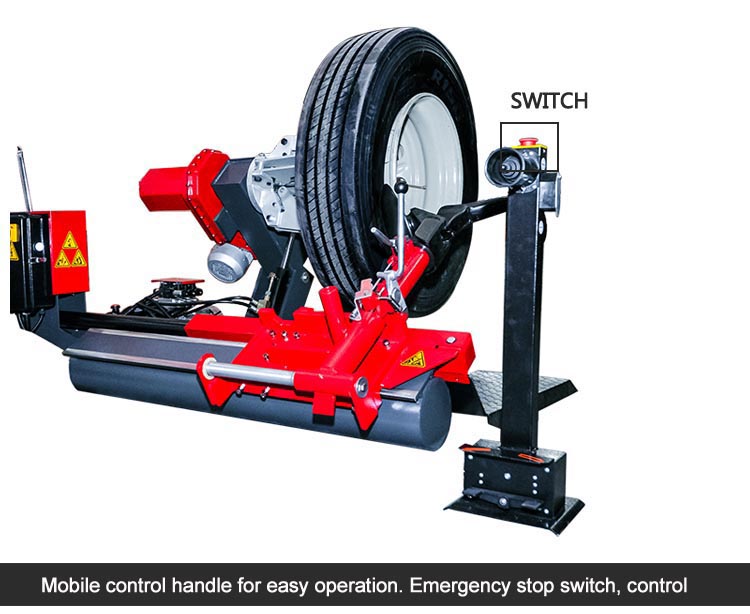

• Enhanced Safety: Equipped with a 24V low-voltage control unit to ensure operator safety during high-pressure hydraulic operations.
