Product Details

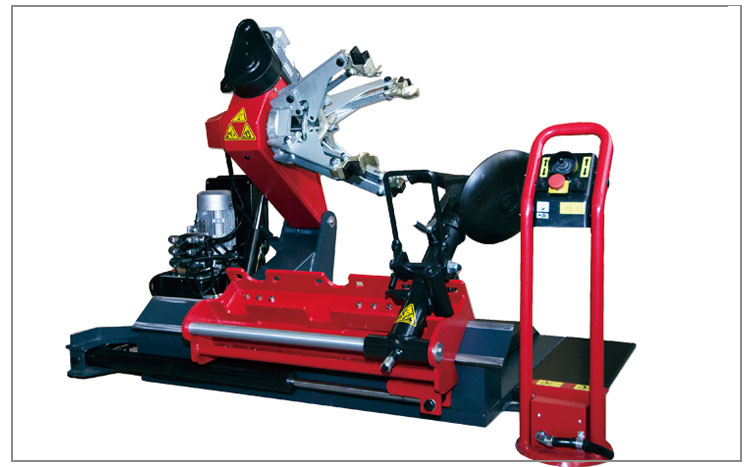

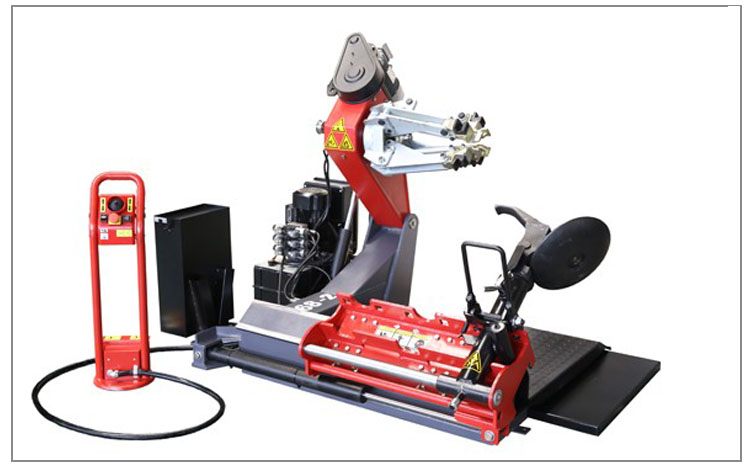

Tire changer S-T568-2
TECHNICAL DATA
| Rim Diamter | 14" - 26" |
| Max.wheel weight | 500kg |
| Max Wheel Width | 780mm |
| Max Tyre Diameter | 1600mm |
| Hydraulic Pump Motor | 1.5KW 380V - 3PH（220V Optional） |
| Gearbox Motor | 2.2KW 380V - 3PH（220V Optional） |
| Bead Breaker Force | 2500kg |
| Operation Control Voltage | 24V |
| Machine Weight Approx | 588kg |
| Overall Dimensions Approx | 2500 × 2000mm |
| Power | 220/400V 50/60HZ 1P/3P Optional |
PRODUCTION INTRODUCTION
· Double speed for rotation motor
· Import hydraulic pump
· Alu protection kit as standard accessory
· Small floor area
WEIGHT&DIMENSIONS
Model：Truck Tire changer T568-2
Gross Weight（kg）：650
Outside Dimension L×W×H（mm）：1830×1480×1080
