Product Details

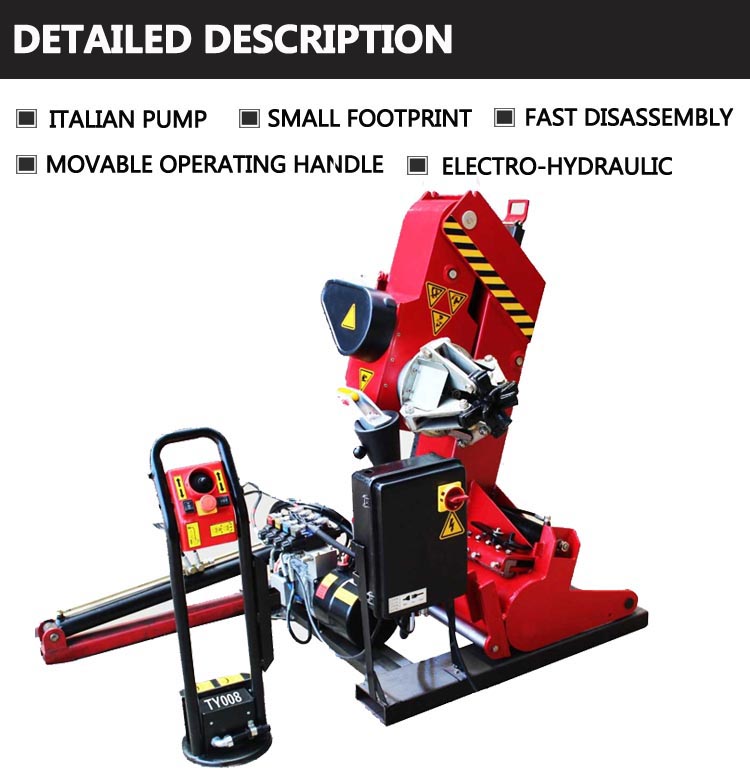

Heavy Duty Truck and Bus Tire Changer S-TY008

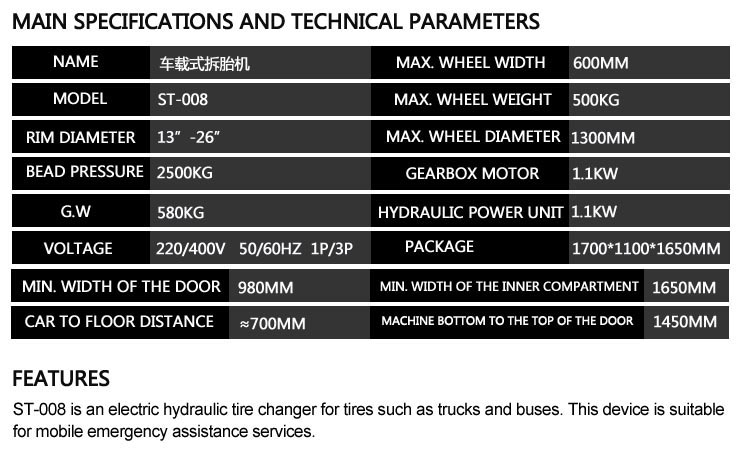

TECHNICAL DATA

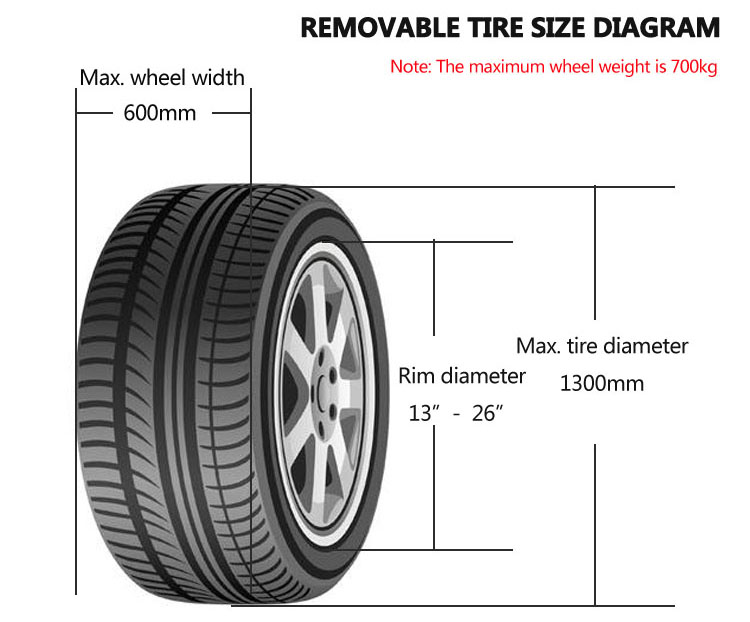

| Rim Diamter | 13" - 26" |
| Max.wheel weight | 700kg |
| Max Wheel Width | 600mm |
| Max Tyre Diameter | 1300mm |

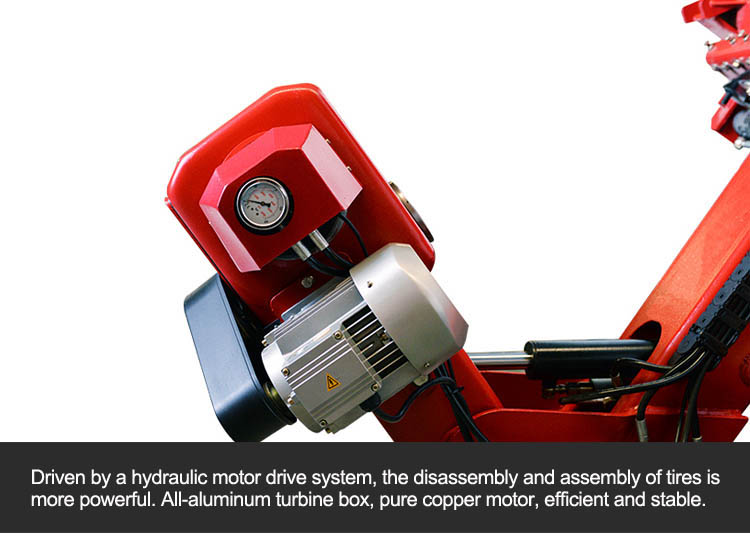

| Hydraulic Pump Motor | 1.1KW |
| Gearbox Motor | 1 |
| Bead Breaker Force | 2500kg |
| Power | 220/400V 50/60HZ 1P/3P Optional |

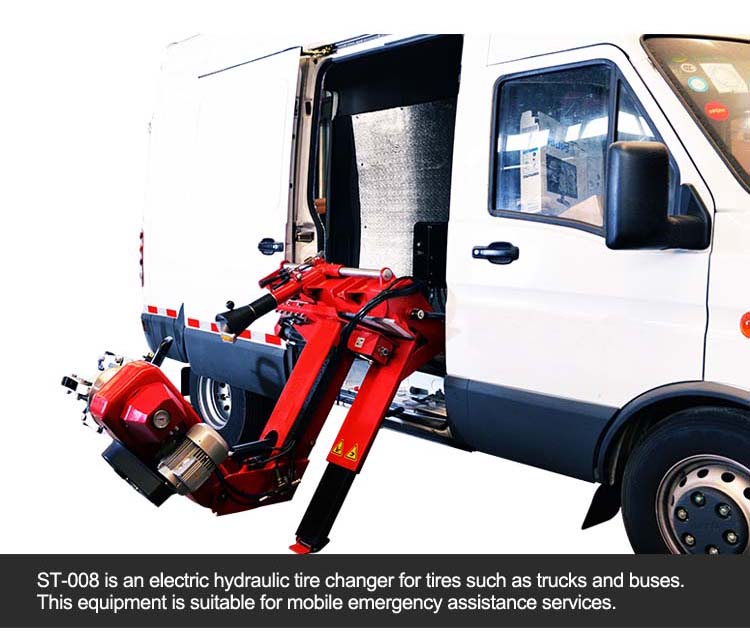

DIMENSIONS OF VAN'S DOOR
| Min.height of Machines Chassis to the Top of the Door | 1450mm |
| Min.Tidth of Inner Van | 1650mm |
| Min.Width of Door | 980mm |
| Thick of Van | ≤160mm |
| Chassis of Van to Floor | ≈700mm |
