Automatic Truck tire changer S-T980
An automatic truck tire changer is a hydraulic machine used to mount and demount heavy-duty vehicle tires such as trucks, buses, tractors, and construction equipment. The S-T980 model supports rim sizes from 14″ to 46″ (up to 56″ with extensions) and can handle wheels weighing up to 2000 kg, making it suitable for professional tire service workshops and fleet maintenance centers
Product Overview

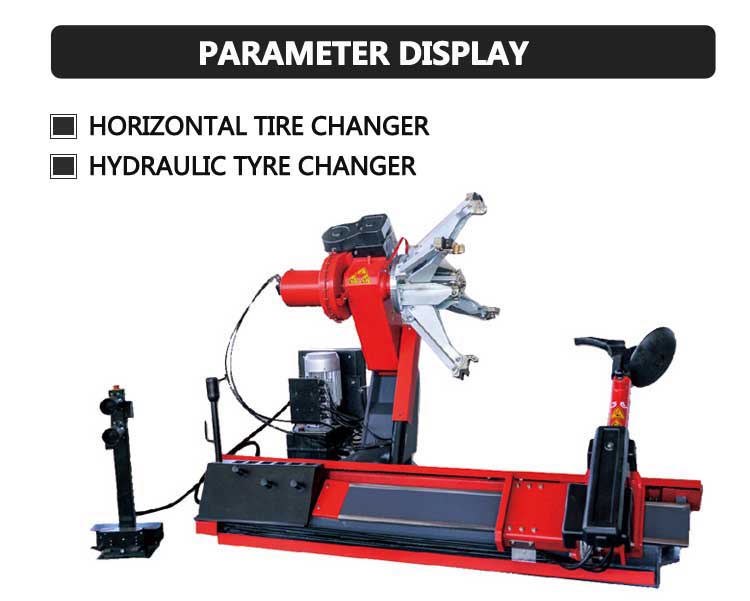

The Automatic Truck Tire Changer S-T980 is a professional heavy-duty tire mounting and demounting machine designed for servicing large commercial vehicle tires.
This machine is specifically developed for:
-
trucks
-
buses
-
tractors
-
trailers
-
agricultural machinery
-
earthmoving vehicles
The S-T980 uses a powerful electro-hydraulic system to safely remove and install large tires. With a rim clamping range of 14″–46″ (expandable to 56″), it can handle a wide variety of commercial vehicle wheels used in logistics, transportation, and construction industries.
The machine also supports wheels up to 2000 kg in weight, allowing tire service technicians to efficiently handle large and heavy truck tires in professional workshops.
Compared with manual tire removal methods, the S-T980 significantly improves safety, efficiency, and productivity for tire service operations.

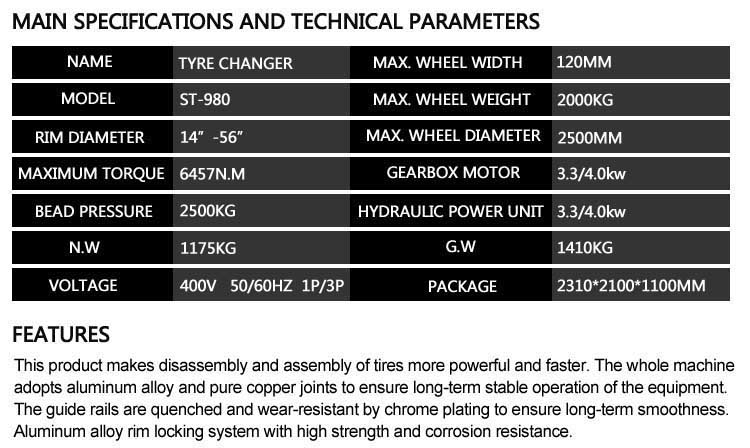

Technical Specifications
| Technical Specification | Details |
| Model Number | S-T980 |

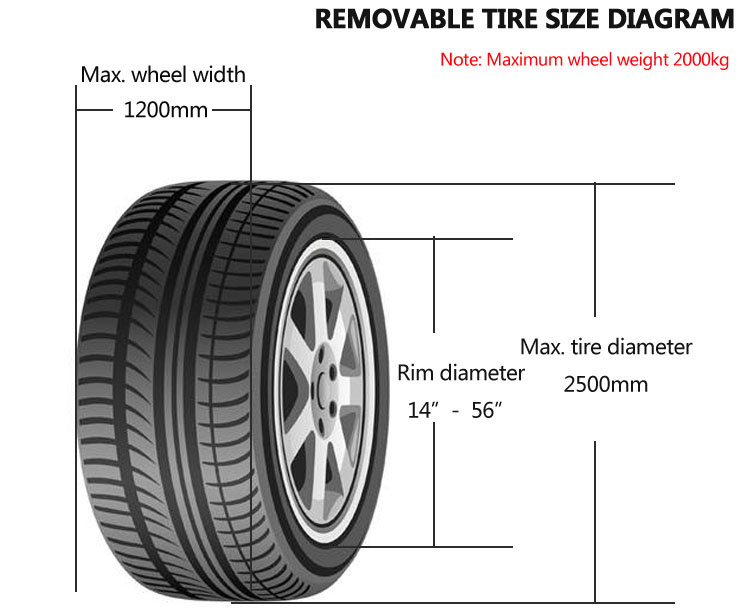

| Rim Clamping Range | 14" – 56" |
| Max Wheel Weight | 2000 kg |
| Max Wheel Diameter | 2500 mm (98") |
| Max Wheel Width | 1200 mm (47") |
| Hydraulic Pump Motor | 1.5 kW – 3.0 kW |
| Bead Breaker Force | 3300 kg |
Key Features of S-T980 Truck Tire Changer
Powerful Electro-Hydraulic System
The hydraulic motor provides strong torque for mounting and demounting heavy truck tires.
Wide Rim Capacity
The machine supports rims from 14″ to 46″, and with optional adapters can extend to 56″, covering most truck and agricultural vehicle tires.
High Load Capacity
The S-T980 can handle wheels weighing up to 2000 kg, making it suitable for heavy-duty commercial vehicle service.
Adjustable Mounting Arm
The hydraulic mounting arm allows technicians to adjust the tool position for different tire sizes.
Two-Direction Rotation
Clockwise and counter-clockwise rotation improves control when installing or removing large tires.
Heavy Duty Industrial Frame
The reinforced steel structure ensures long-term durability in busy tire service workshops.
Applications
The S-T980 automatic truck tire changer is widely used in professional tire service environments.
Truck Tire Service Workshops
Commercial truck repair shops require heavy-duty machines to handle large tires efficiently.
Fleet Maintenance Centers
Logistics companies and transportation fleets use tire changers for regular maintenance.
Bus and Coach Service Workshops
Bus service centers often deal with large wheels that require specialized equipment.
Agricultural Equipment Service Centers
The machine can handle tractor and agricultural machinery tires.
Construction Equipment Maintenance
Large earthmoving vehicles also require heavy-duty tire changing equipment.
Advantages of Using an Automatic Truck Tire Changer
Increased Service Efficiency
Professional tire changers significantly reduce the time needed to mount and demount large truck tires.
Reduced Labor Intensity
The hydraulic system minimizes manual effort when handling heavy wheels.
Improved Workshop Safety
Secure clamping systems reduce the risk of accidents when servicing large tires.
Professional Service Capability
Workshops equipped with heavy-duty tire changers can service a wider range of commercial vehicles.
How a Truck Tire Changer Works
A truck tire changer uses hydraulic power and mechanical tools to safely remove and install large tires.
Typical operation steps include:
-
Place the wheel on the machine platform
-
Clamp the rim using hydraulic jaws
-
Break the tire bead from the rim
-
Rotate the mounting arm to remove the tire
-
Install the new tire and inflate
This process improves both safety and efficiency compared with manual tire removal methods.
Why Choose Our Truck Tire Changer
Our tire service machines are manufactured for professional workshops and global distributors.
Advantages include:
-
Durable industrial design
-
Stable hydraulic system
-
Easy operation for technicians
-
OEM customization available
-
Competitive factory pricing
-
Global export experience
We supply tire service equipment to customers in:
-
Europe
-
Middle East
-
South America
-
Southeast Asia
Contact UsAQ – Automatic Truck Tire Changer
What vehicles can the S-T980 service?
The machine is designed for trucks, buses, tractors, and construction vehicles.
What is the maximum wheel weight the machine can handle?
The S-T980 supports wheels weighing up to 2000 kg.
What rim sizes does the machine support?
The standard rim range is 14″–46″, and optional adapters allow expansion up to 56″.
What power supply is required?
The machine typically operates on 400V three-phase power.
Why do tire shops need a truck tire changer?
Truck tires are large and heavy. A professional tire changer improves efficiency, safety, and service quality.
