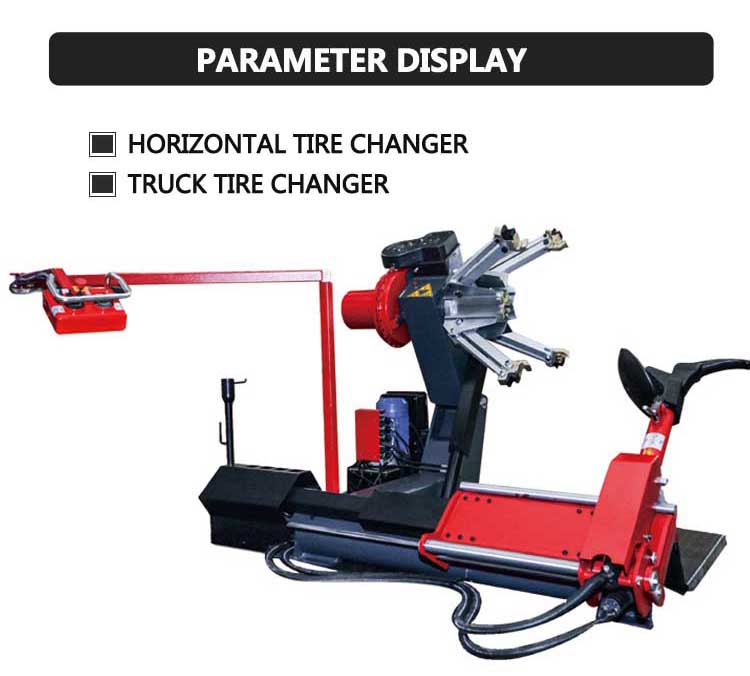

Truck Tire Changer S-T698

TECHNICAL DATA

PRODUCTS INTRODUCTION

· Fully - Automatic universal truck tyre changer S-T698 for industrial、agricultural and earthmoving wheels

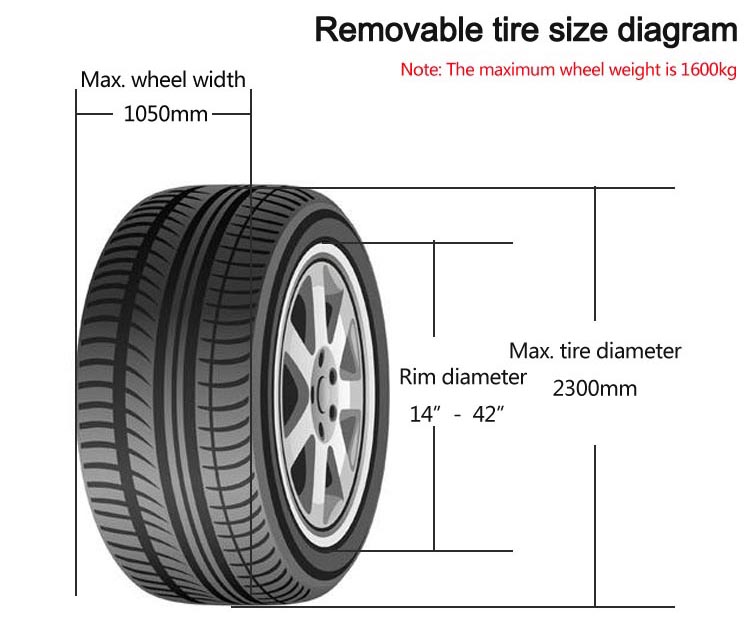

· Rim capacity 14” - 42"
· Double rotational speeds optional
· Italian pump optional

Product Overview

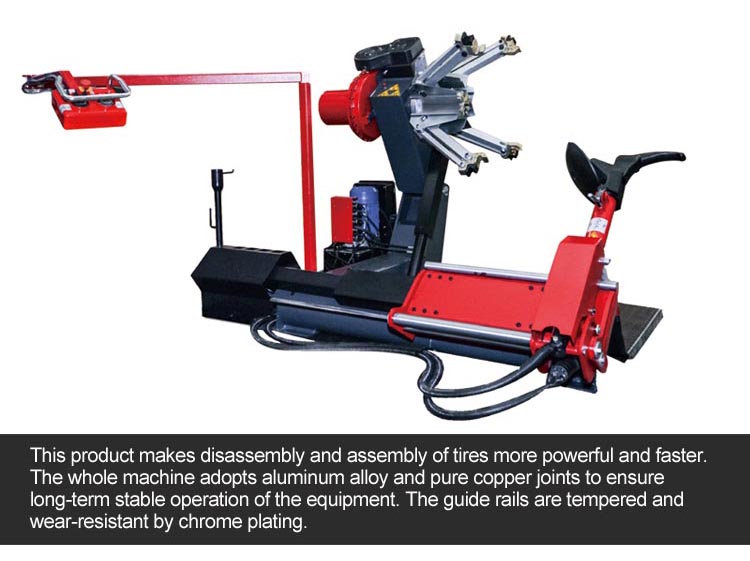

The S-T698 represents the pinnacle of heavy-duty tire service technology. Engineered for high-intensity professional workshops, this fully automatic truck tire changer handles everything from standard commercial trucks to massive agricultural and earthmoving equipment (OTR). With its extended clamping range of up to 56 inches and a high-torque hydraulic system, the S-T698 minimizes manual labor while maximizing safety and precision during the mounting and demounting process.

Advanced Key Features

• Fully Automated Operation: Features a synchronized hydraulic movement of the tool carrier arm and the universal chuck, significantly reducing setup time.

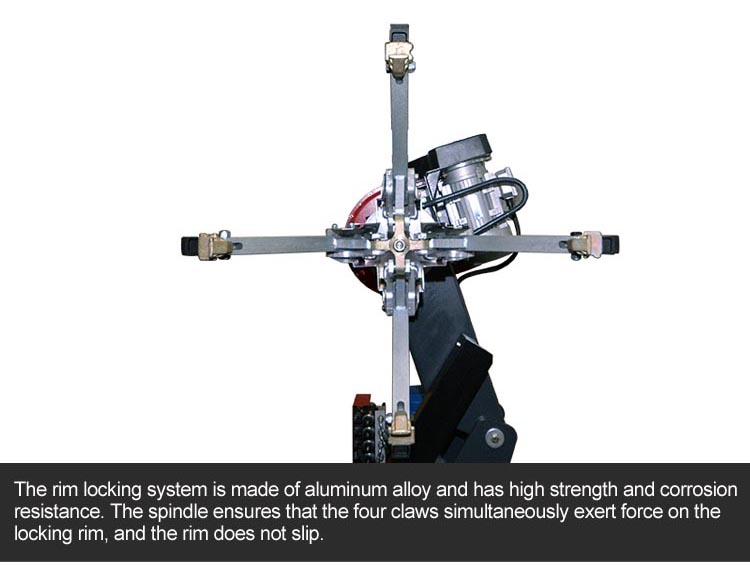

• Extreme Versatility: The heavy-duty four-jaw chuck supports rims from 14" to 42", expandable to 56" with optional extensions, covering almost all heavy vehicles globally.

• High-Torque Dual-Speed Motor: Provides two speeds of rotation in both directions, allowing for delicate control on alloy rims and rapid power for stubborn OTR tires.

• Reinforced Bead Breaker: The specialized bead-breaking disc delivers up to 3500kg of force, making light work of rusted or over-tightened beads.

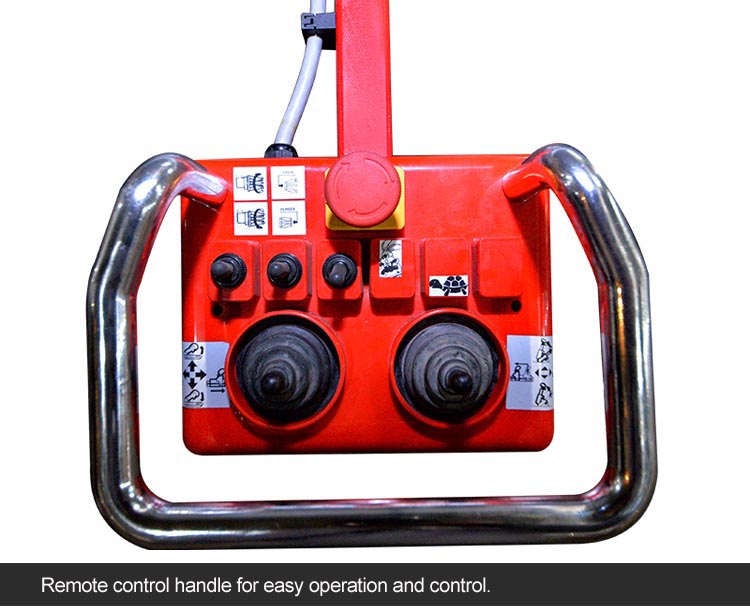

• Ergonomic Mobile Controller: (Optional Wireless) The stand-alone control station ensures the operator can maintain a safe distance while having a perfect 360-degree view of the work area.

Frequently Asked Questions (FAQ)

• Q: Can the S-T698 handle tires for mining and construction equipment?

  • A: Yes. The S-T698 is designed for OTR (Off-the-Road) tires, with a load capacity of 1600kg and a maximum tire diameter of 2500mm, making it ideal for heavy industrial use.

• Q: Is the control system easy for a single operator?

  • A: Absolutely. The fully automatic robotic arm and the mobile control console allow a single technician to complete the entire tire-changing process without manual lifting.

• Q: What makes the S-T698 different from the S-T568?

  • A: The S-T698 offers a significantly larger clamping range (up to 56" vs 26"), higher bead-breaking force, and more automated tool movements for larger wheel assemblies.
