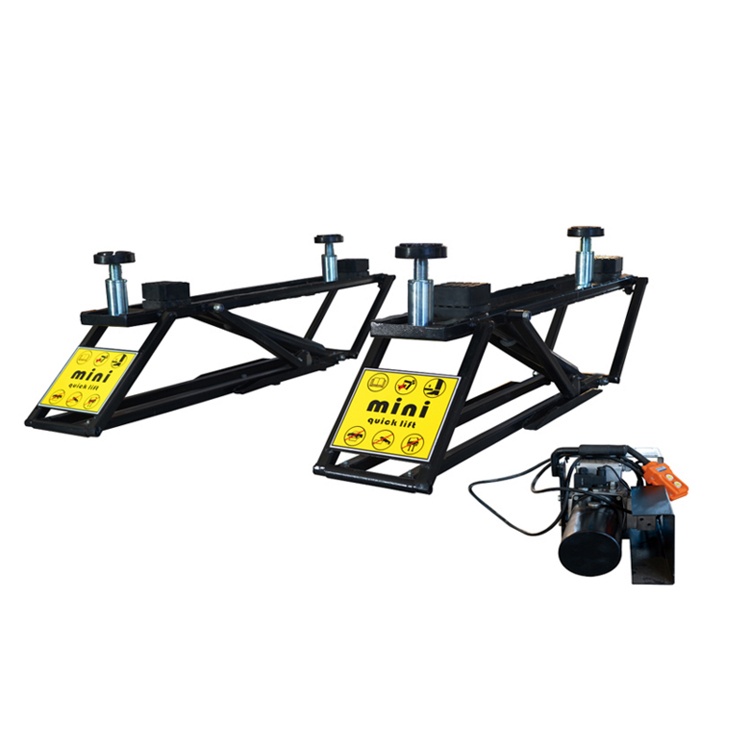

2.5t Auto Mobile Electric Portable Car Scissor Mini Lift

Product Details

2.5t Auto Mobile Electric Portable Car Scissor Mini Lift

Mobile Electric Portable Car Scissor Mini Lift Mobile Electric Portable Car Scissor Mini Lift Mobile Electric Portable Car Scissor Mini Lift Mobile Electric Portable Car Scissor Mini Lift Mobile Electric Portable Car Scissor Mini Lift

Product Paramenters

Lifting capacity 2800kg
Lifting height 570mm
Min.height 90mm
Lifting time 20~25s
Motor power 0.75kW
Power supply 12V/DC、 220V、 l10V、 380V/50HZ/AC
0il pressure 18Mpa
Weight 95kg/110kg
Packing Size 1810x310xl10x2mm+580x280x270mm

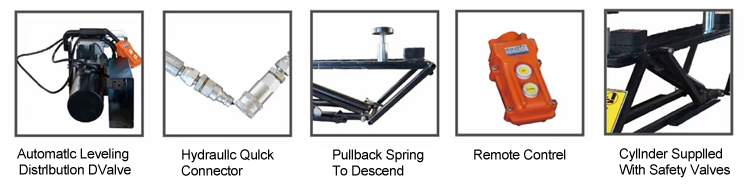

Features

1.Small structure,light weight,portable and Space saving

2.Quick-Connection hoses and portable power unit insures proper sealing,convenient handling,simple operation

3.Separate and open-center frames fit various sites and compact vehicles

4.Hydraulic system features automatic levelinq distribution valve for balance of 2 frames 5.Remote control for convenience and safety

6.Dual-position automatic safety lock automatically engages as the lift ascends

7.12 pieces adjustable rubber blocks and 4 pieces height extensions to support under chassis at different height

8.Cylinders are supplied with safety valves that prevent quick descending when hydraulic hoses fail
