1 safety precautions

1.1. Pleasread this instruction carefully before using the equipment. It is strictly for bidden

to operate this machine without reading this instruction.

2. Remove barriers around and below the platform before working.

1.3. Lift type, lift the left, right and up and down can not stand people, lift the car al so can

not ride personnel.

4. The weight of the lifted vehicle shall not exceed the lifting capacity of the lifting machine.

1.5. Lift, should be the car's manual zhi pull, pad good anti - skid triangle wood and other

anti - skid devices (user self - provided).

1.6. Only when the lock core of the four safety locks is determined to enter the squar e hole of the lock

plate, the maintenance personnel can enter the working area.

1.7 When the lift is not used, cut off the power supply.

1.8 After the lifting machine is used for a period of , e wire rope will be stretched in

different degrees to cause uneven work table. At this time, the length of the wire rope should

be adjusted in time.

1.9 The machine should be maintained in strict accordance with this manual, and the main

parts should be checked and maintained carefully.

1.10 Fire protection devices, such as fire extinguishers, should be equipped on the site of

equipment use (users' own)

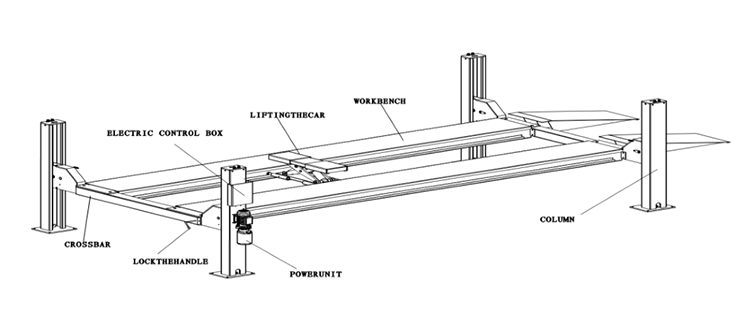

2 Characteristics of the profile

The lifting machine has been carefully designed, reasonable structure, safe and reliable,

hydraulic drive of work table, stable work, easy operation, low noise;Adopt new safety

lock and pneumatic unlock mechanism, sensitive and reliable;And equipped with a new

Parameter

3 Main Lifting Capacity:12000 kg

Platform Length:7000MM

Overall Height :2400MM

Minimum Height :220MM

Platform Width:650MM

Width Between Platforms:1100MM

Motor Power:3.0KW

Electricity Supply : 415V/50HZ/3PH

Lifting Time:110S

Max. Lifting Height:1700MM

Weight:3000KG

Note: items marked with "*" symbol can provide products with different voltages and frequencies according to user requirements (for specific parameters, please refer to the equipment label)
