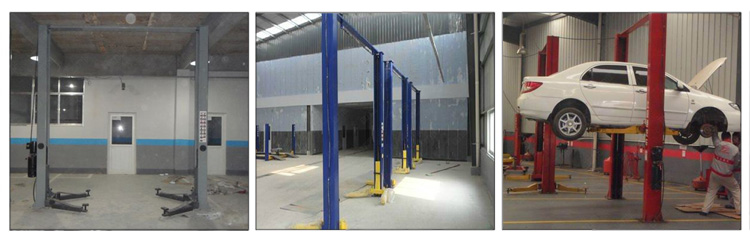

4 ton two Post lift

Technical data

Lifting capacity          4000kg

Lifting height            1800mm

Lifting time              50-60s

Total height              3750mm

Total width               3320mm

Width between pillars     2750mm

Lane width                2430mm

Power supply              220v/380v

Net weight                630kg

Packing dimension         3800*500*750mm

Advantage

1.body with safety design, which is surrounded by metal from upside, middle, lower part

2.with a alone power switch to control  and increase the safety

3.The chain by using a 10 pcs reinforced chain, much stronger than 7 pcs chain

4. Lifting arms all are fixed by steel strand or Channel. The machine is more stable

Product Features

Lifting Machine uses high-quality steel, consists of a hydraulic cylinder system, car jack ,lifting arm with 2 kinds of support pad .
