Cangzhou Shengshi Weiye Automobile Accessory co.,ltd.

Tire Changer For Car

Tire Changer S-850C For Car

Product Details

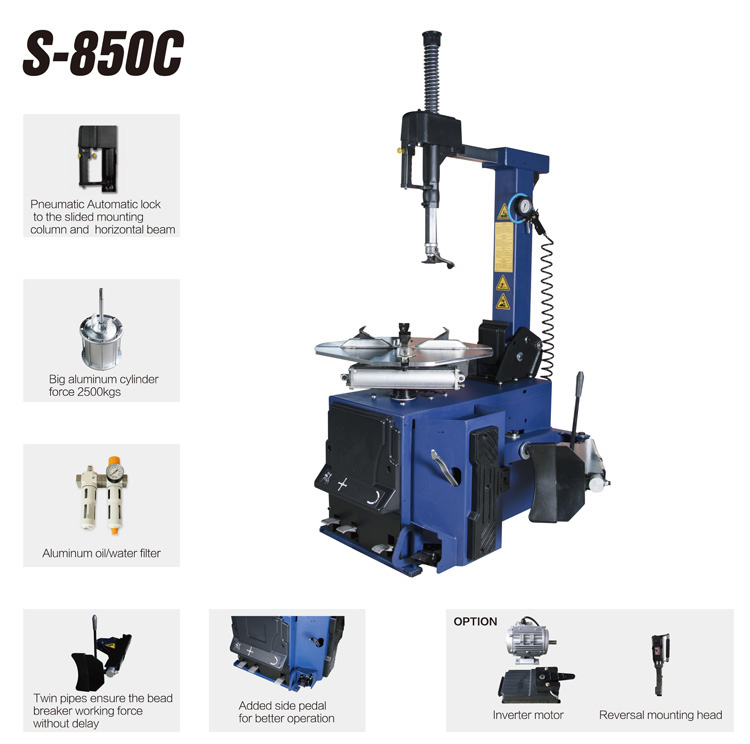

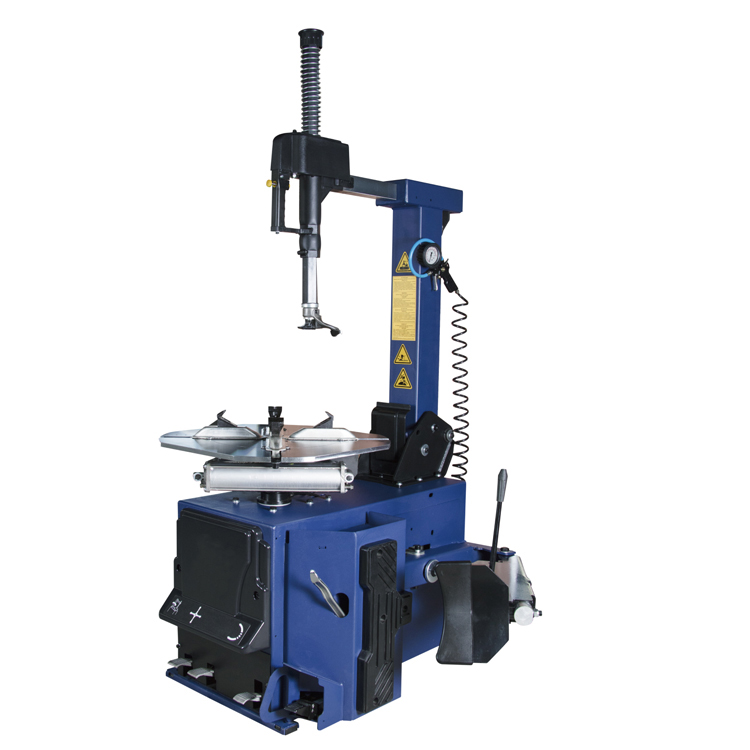

Tire Changer S-850C For Car



Tire Changer S-850C For Car Tire Changer S-850C For Car

  1. Full-laser cutting; all-aluminum large cylinder; all-aluminum explosion-proof oil and water separator; double-layer pull bars inside the box body; large arm once molding and drawer type all-aluminum pedal assembly.
  2. Easy to demount and mount tire; explosion-proof flat tire. Using all-aluminum turbine box and pure copper large power motor, designed by thicker assistant arm to comfortably deal with explosion-proof flat tire.
  3. Designed with independent pneumatic locking six square bar and push-pull arm. Much easier and faster to operate. Due to the extremely high working frequency of six square bar, we use 45 high-strength steel with surface phosphate treatment technique, which is corrosion-resistant.
                                   SPECIFICATION S-850C
Rim Clamping Outer 10”-22”
Rim Clamping Inner 12”-24”
Max Tyre Diameter 1100mm/43”
Max Tyre Width 390mm/15”
Working Air Pressure 3.5 bar
Bead Breaker Cylinder Force 2500kg
Power Supply 220V/380V
Motor Power 1.1kw/0.75kw
N.W. 225kg
Dimension 1000*760*950
