Tire Valve

Tire values TR573

Product Details

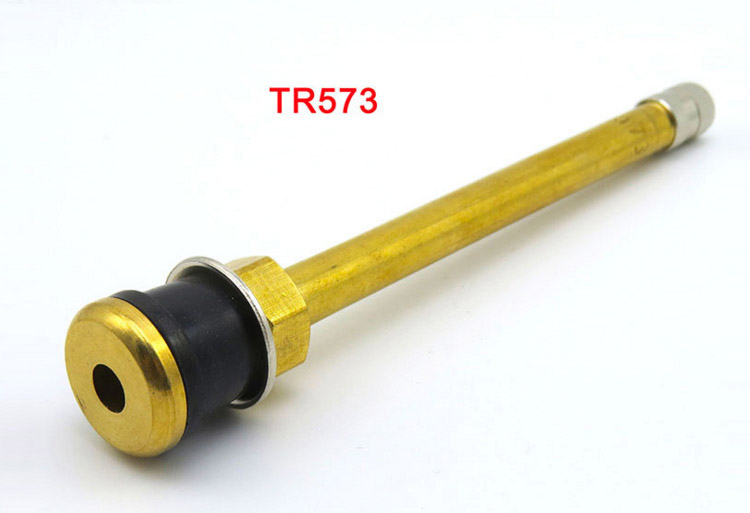

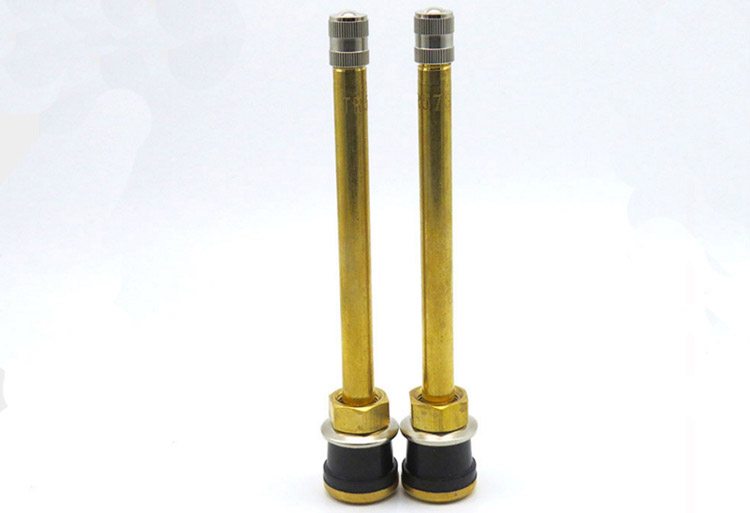

Tire values TR573

Product name Truck tire valve TR573
Material Metal
MOQ 10000pcs
Application Truck tubeless tire
Sample Free
OEM Available
Packing 1000pcs/carton
ITEM NO A
(mm)
RIM HOLE PACKING
(pcs/carton)
PACKING SIZE(cm) G.W
(kg)
TR-500 51 15.9 800 31*23.5*18 25
TR-501 38 15.9 1000 37*20*19 28
TR-570 79.5 15.9 500 31*23.5*18 20
TR-571 86 15.9 500 31*23.5*18 21
TR-572 96 15.9 500 31*23.5*18 22
TR-573 111 15.9 1000 31*23.5*18 23
TR-574 127 15.9 1000 31*23.5*18 24
TR-575 28.5 15.9 1000 30*20*16 26

Advantages
1. Our products are 100% tested and made of only the highest quality materials
2. Our factory is one of top leading manufacturers in China.
3. Belong to clamp-in tubeless valves
4. Cold, heat and ozone resistant
5. All the products of stem are painted with chemlok
6. We can produce any kinds of clamp-in tubeless valves according samples or drawing

Tire values TR573Tire values TR573Tire values TR573

 Installation method
1. Remove valve core and deflate
2. Separate tire toe port and Unloaded from its rims
3. Remove tire valves
4. Clean the hole on the rim
5. Check and make sure the valve core is screwed.
6. Install the new tire valve from inner part of rims
7. Install correctly and inflate untill it reaches the rated pressure
8 . Screw on the new cap

Notes
1 Different models of tire valves are suitable for different types of tires and vehicles, the valve can not be replaced when using.
2 Caution when using the tire valves, use a pressure gauge to detect; dissipate heat before inflating; keep clean to avoid impurities entering into the tire to influence the tire air pressure; using soapy water to detect leaks.
3 The tire valve has rubber material, it may age and have cracks after time, the general useful life is 3--4 years, similar to the tire, so we need to change the tire valves together with the tires.
4 Store in a dry ventilated and protected from heat exposure, anti-corrosion, no oil warehouse.
