Cangzhou Shengshi Weiye Automobile Accessory co.,ltd.

Wheel Banlance

Wheel Balancer GEO988

Product Details

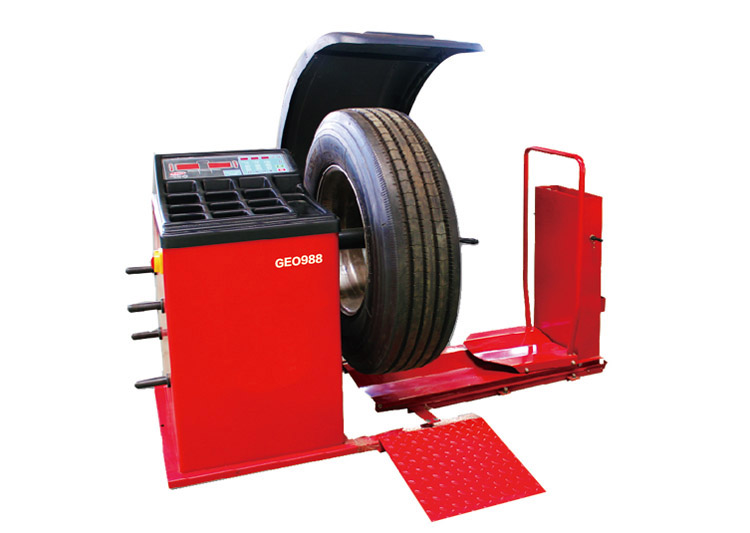

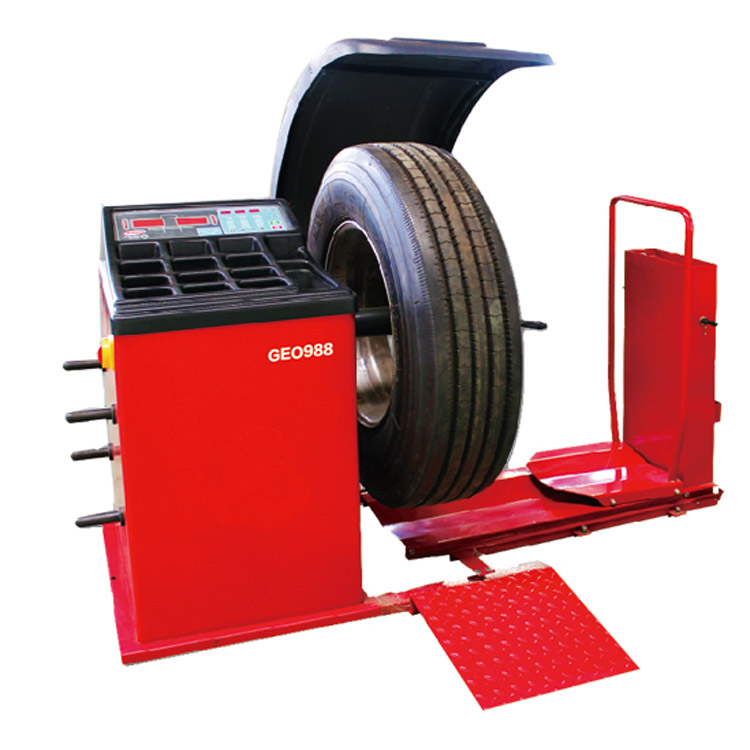

Wheel Balancer GEO988

Wheel Balancer

TECHNICAL DATA

Rim Diamter 16" - 24”
Rim Width 5.7 - 20"
Max.wheel weight 200kg
Max Wheel diameter 1250mm
Air pressure 8- 10 bar
Testing Time 12- 20s
Protection Cover supplied
Pneumatic Built-In Lift supplied
Power Supply 220V 50Hz 1PH

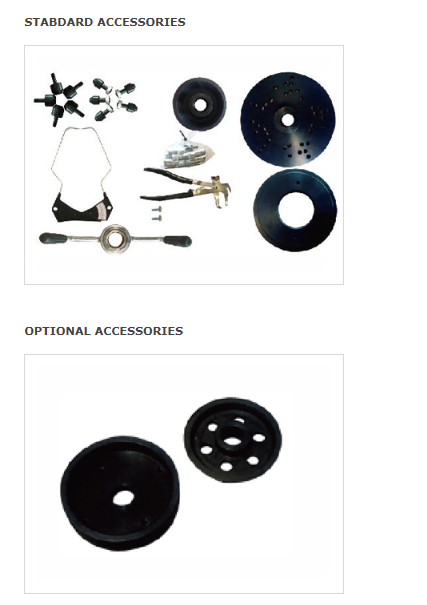

Standard Accessories(supplied) International universal standard standard flange tapering(diameter range 40-285mm) wheel width calipers,lock nut Wheel ballast weight pliers

PRODUCTS INTRODUCTION

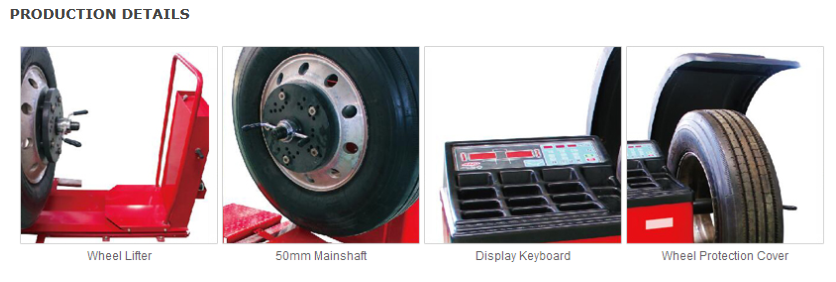

· Keypad control panel with bright LED displays indicate 2 weight amounts  2 weight locations,3D rim dimension data entry and 3 selection balance mode.
· Precise wheel clamping system flange,easy and fast to fix the wheel on the measuring.
· Balancer axle.Safety set with microswich the wheel cover is on position then the wheel begins to rotate.

Wheel Balancer Wheel Balancer

Wheel Balancer

WEIGHT&DIMENSIONS
Model:GEO988
Gross Weight(kg):370
Outside Dimension L×W×H(mm):1340×940×1180
